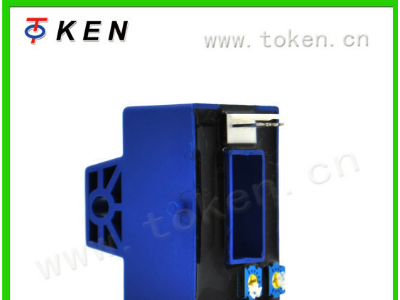

TKC-BS REV-A4.0

 　　TKC-BS系列开环型霍尔电流传感器的初、次级之间是绝缘的，用于控制、测量直流、交流和脉冲电流。

　　TKC-BS series current sensor is a open loop device based on the measuring principle of the hall effect, with a galvanic isolation between primary and secondary circuit. It provides accurate electronic measurement of DC, AC or pulsed currents.

　　电参数 Electrical data (Ta=25℃±5℃,RL=2KΩ,CL=10000PF)

型号 Type 参数 Parameter	TKC50 BS	TKC75 BS		TKC100 BS	TKC150 BS	TKC200 BS	TKC300 BS	TKC400 BS	TKC500 BS	TKC600 BS	单位 Unit
额定输入电流(Ipn) Rated input (Ipn)	±50	±75		±100	±150	±200	±300	±400	±500	±600	A
测量电流范围(Ip) Measure range(Ip)	±150	±225		±300	±450	±600	±900	±900	±900	±900	A
额定输出电压 Rated output	@Ip=±Ipn                           ±4±1%										V
电源电压   Supply voltage	±15 ±5%										V
功耗电流 Power Consumption	+18,-10										mA
失调电压 Offset voltage	±25										mV
磁失调电压 Magnetic offset	±30		±25								mV
失调电压温漂 Offset drift	≤±1.5		≤±1.0								mV/℃
输出电压温漂 output drift	≤±1.5		≤±1.0								mV/℃
线性度 Linearity	@Ip=0-±Ipn                              ≤1										%FS
响应时间 Response time	@50A/μS,  10%-90%                     ≤3										μS
绝缘电压 Galvanic isolation	@ 50HZ，AC，1min                       2.5										KV
带宽 Bandwidth	@DC,(-3dB)                                 25										KHz

　　应用 Applications

　　● 交流变速驱动器

　　AC variable speed drives

　　● 直流电机驱动静态转换器

　　Static converters for DC motor drives

　　● 变频调速系统

　　Variable speed drives

　　● 电焊机

　　Power supplies for welding applications

　　● 通讯电源

　　Battery supplied applications

　　● 不间断电源UPS

　　Uninterruptible Power Supplies (UPS)

　　● 开关电源

　　Switched Mode Power Supplies(SMPS)

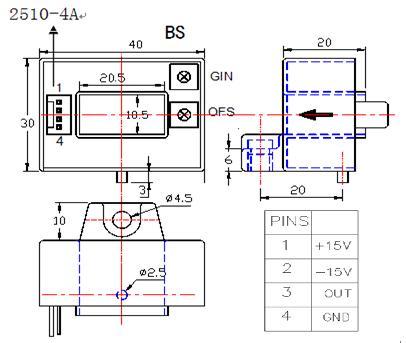

 　　结构参数 Mechanical dimension(for reference only)

　　Remarks：

　　1. All dimensions are in mm.

　　2. General tolerance ±1mm.

　　使用说明 Directions for use

　　1. 当待测电流从传感器穿过，即可在输出端测得电压大小。(注意：错误的接线可能导致传感器损坏)

　　When the current will be measured goes through a sensor ,the voltage will be measured at the output end。

　　(Note: The false wiring may result in the damage of the sensor).

　　2. 可按用户需求定制不同额定输入电流和输出电压的传感器。

　　Custom design in the different rated input current and the output voltage are available.

　　执行标准 Standards

　　● UL94-V0.

　　● EN60947-1:2004

　　● IEC60950-1:2001

　　● EN50178:1998

　　● SJ 20790-2000

　　总体参数 General date

	数值 Value	单位 Unit	符号 Symbol
工作温度 Operating temperature	-40 to +85	ºC	TA
储存温度 Storage temperature	-40 to +125	ºC	TS
毛重(约)  Mass(approx)	BS:65	g	M

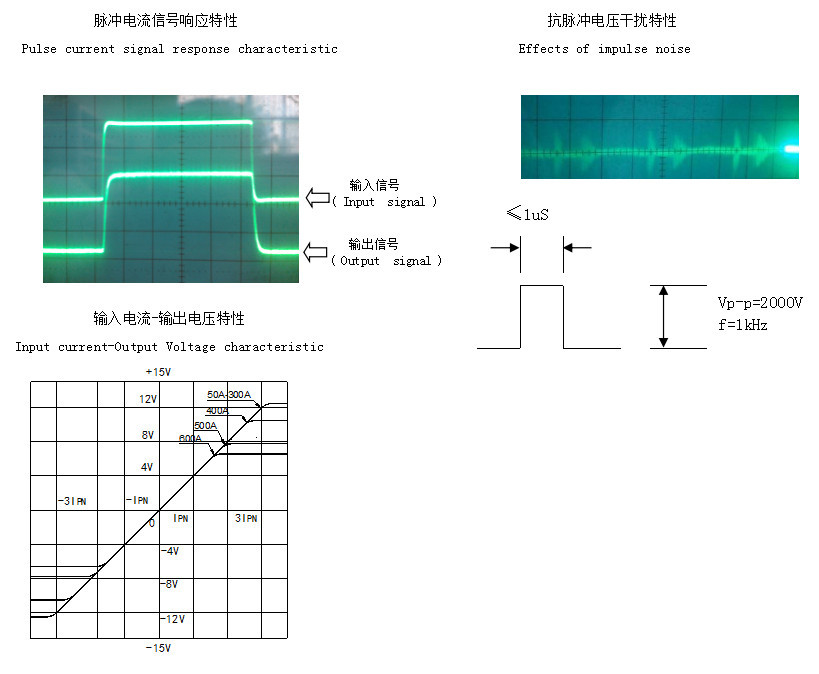

　　特性图 Characteristics chart
