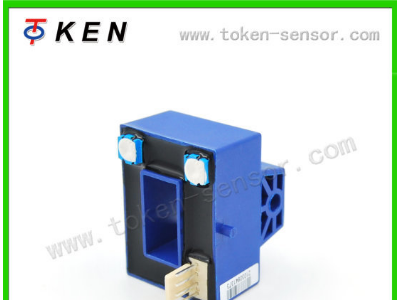

TKC-BS2 REV-A4.0

 　　TKCBS2 系列电流传感器的初、次级之间是绝缘的，可用于测量直流、交流和脉冲电流。

　　The TKCBS2 series current sensor is a open loop device based on the measuring principle of the hall effect, with a galvanic isolation between primary and secondary circuit. It provides accurate electronic measurement of DC, AC or pulsed currents.

　　电参数 Electrical data

型号 Type 参数 Parameter	TKC 50BS2	TKC 75BS2	TKC 100BS2	TKC 150BS2	TKC 200BS2	TKC 300BS2	TKC 400BS2	TKC 600BS2	单位
额定输入电流 Rated input current	±50	±75	±100	±150	±200	±300	±400	±600	A
测量电流范围 Measure current range	±150	±225	±300	±450	±600	±900	±900	±900	A
额定输出电压 Rated output voltage	±4±1%								V
电源电压   Supply voltage	±15±5%								V
失调电压 Offset voltage	±25								mV
功耗电流 Consumption Current	≤25								mA
磁失调电压 Magnetic offset voltage	±30	±25							mV
失调电压温漂 Offset voltage drift	≤±1.5	≤±1.0							mV/℃
输出电压温漂 Output drift	≤±1.5	≤±1.0							mV/℃
线性度 Linearity	≤1								%FS
响应时间 Response time	≤3								μS
带宽 Bandwidth	@DC,(-3dB)                              25								KHz
绝缘电压 Galvanic isolation	@ 50HZ，AC，1min                        2.5								KV

　　应用 Applications

　　● 交流变速驱动器

　　AC variable speed drives

　　● 直流电机驱动静态转换器

　　Static converters for DC motor drives

　　● 变频调速系统

　　Variable speed drives

　　● 电焊机

　　Power supplies for welding applications

　　● 通讯电源

　　Battery supplied applications

　　● 不间断电源UPS

　　Uninterruptible Power Supplies (UPS)

　　● 开关电源

　　Switched Mode Power Supplies(SMPS)

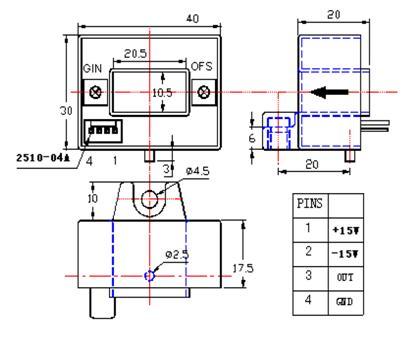

 　　结构参数 Mechanical dimension(for reference only)

　　Remarks：

　　1. All dimensions are in mm.

　　2. General tolerance ±1mm.

　　使用说明 Directions for use

　　1. 当待测电流从传感器穿过，即可在输出端测得电压大小。(注意：错误的接线可能导致传感器损坏)

　　When the current will be measured goes through a sensor ,the voltage will be measured at the output end。

　　(Note: The false wiring may result in the damage of the sensor).

　　2. 可按用户需求定制不同额定输入电流和输出电压的传感器。

　　Custom design in the different rated input current and the output voltage are available.

　　执行标准 Standards

　　● UL94-V0.

　　● EN60947-1:2004

　　● IEC60950-1:2001

　　● EN50178:1998

　　● SJ 20790-2000

　　总体参数 General date

	数值 Value	单位 Unit	符号 Symbol
工作温度 Operating temperature	-40 to +85	ºC	TA
储存温度 Storage temperature	-40 to +125	ºC	TS
毛重(约)  Mass(approx)	BS2:65	g	M

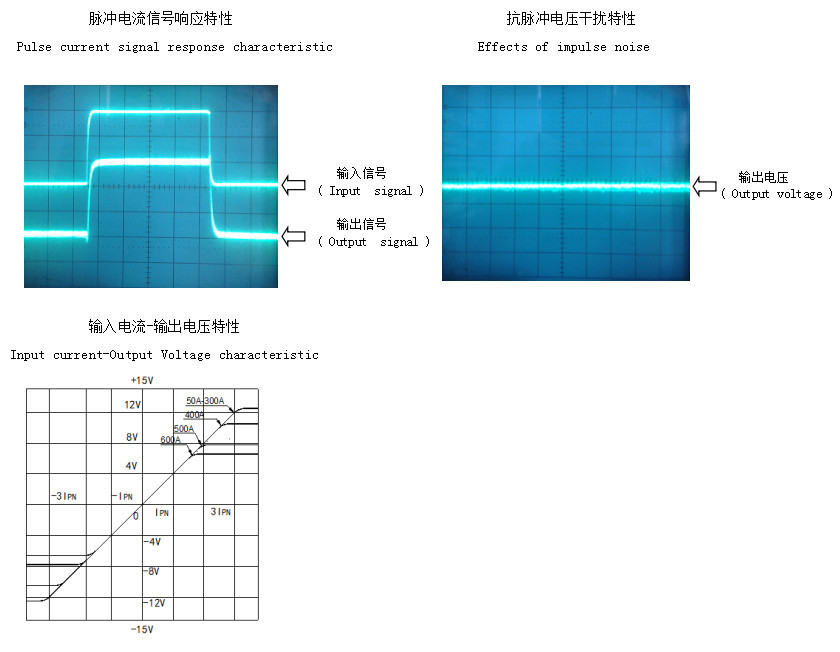

　　特性图 Characteristics chart
